SetupRobotics ToolBase

The generalized end effector for all tasks.

Preparing a robot for different tasks can be a complicated polytechnical task.

The design goal for the SetupRobotics ToolBase was to handle all challenges in a generalized solution.

That is: Tool + Activation + Status

The robot simply has to activate any mounted tool and the feedback is whether it is going as planned.

A visual explanation can be obtained by watching the animations rigth.

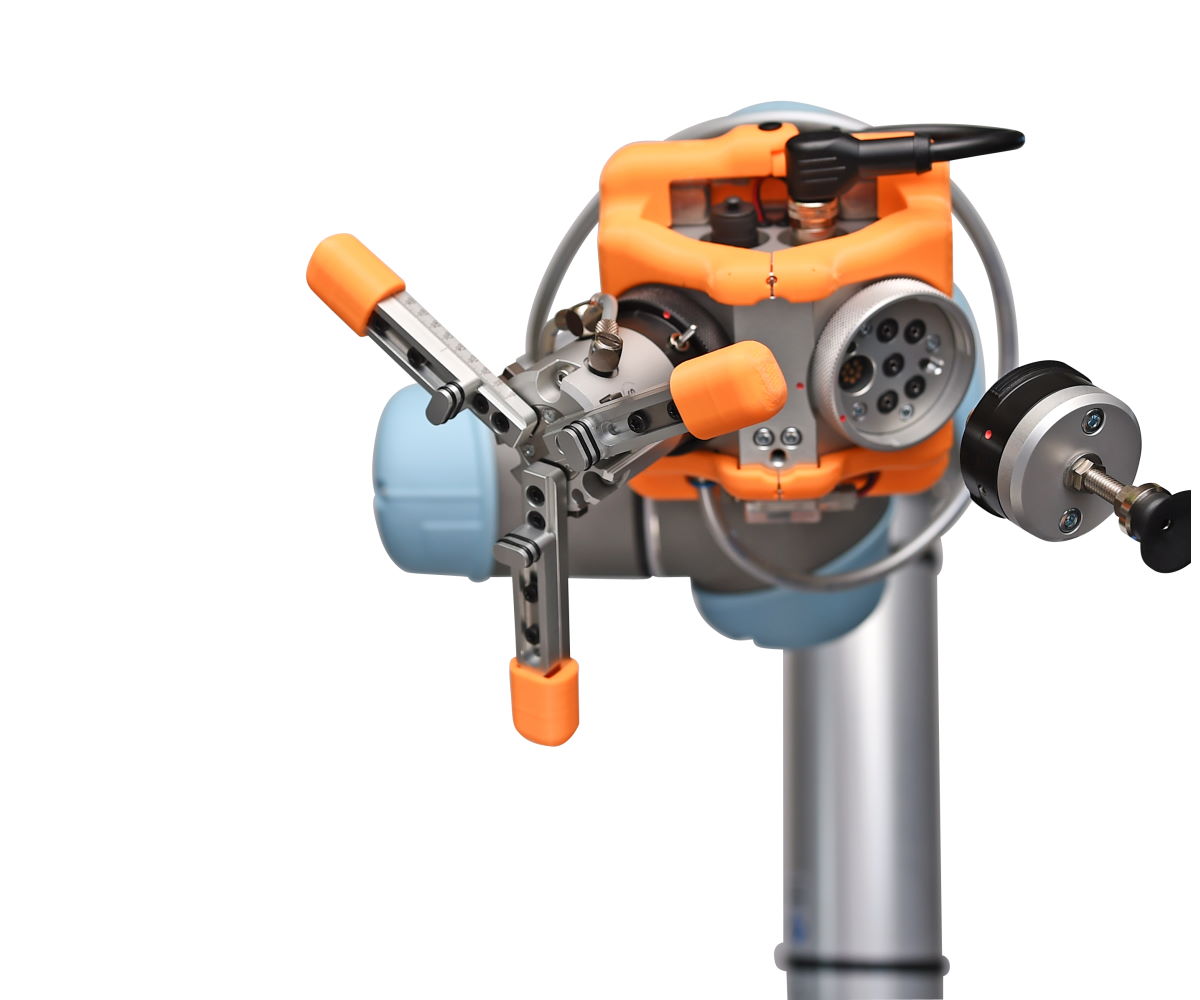

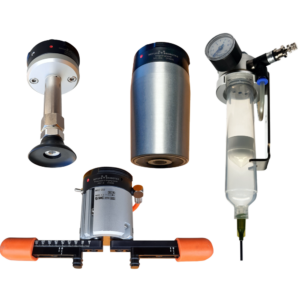

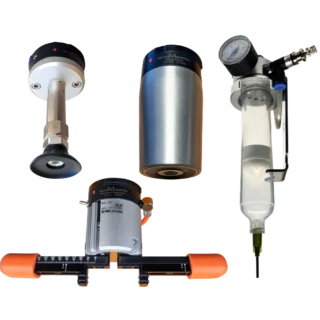

With SetupRobotics ToolBase e-tools 1 robot controls 4 totally different tools (finger+vacuum+dispense+UV cure) in one setup. No tool change needed.

5sAutomate has successfully installed SetupRobotics ToolBase solutions in countless Robot cells through the Polish manufacturing industry.

Vacuum gripper + Finger gripper on Dual ToolBase.

When pick’n place to and from a proces no fixture is needed.

Simply stack all parts together in a corner and pick using vacuum

Place back using fingers

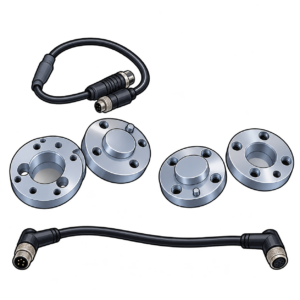

E-pendants are extra tools connected to E-Tools (On E-tools is a connector for an E-pendant)

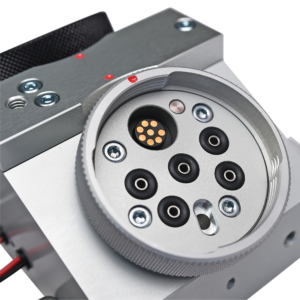

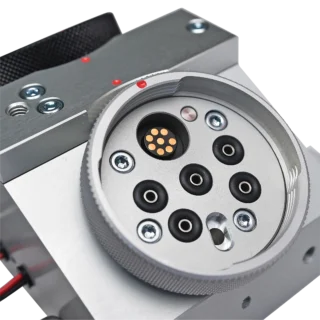

Single ToolBase total 2 tool, Dual Toolbase total 4 tools.

e.g. A dispenser with UV glue and an UV curing lamp.
