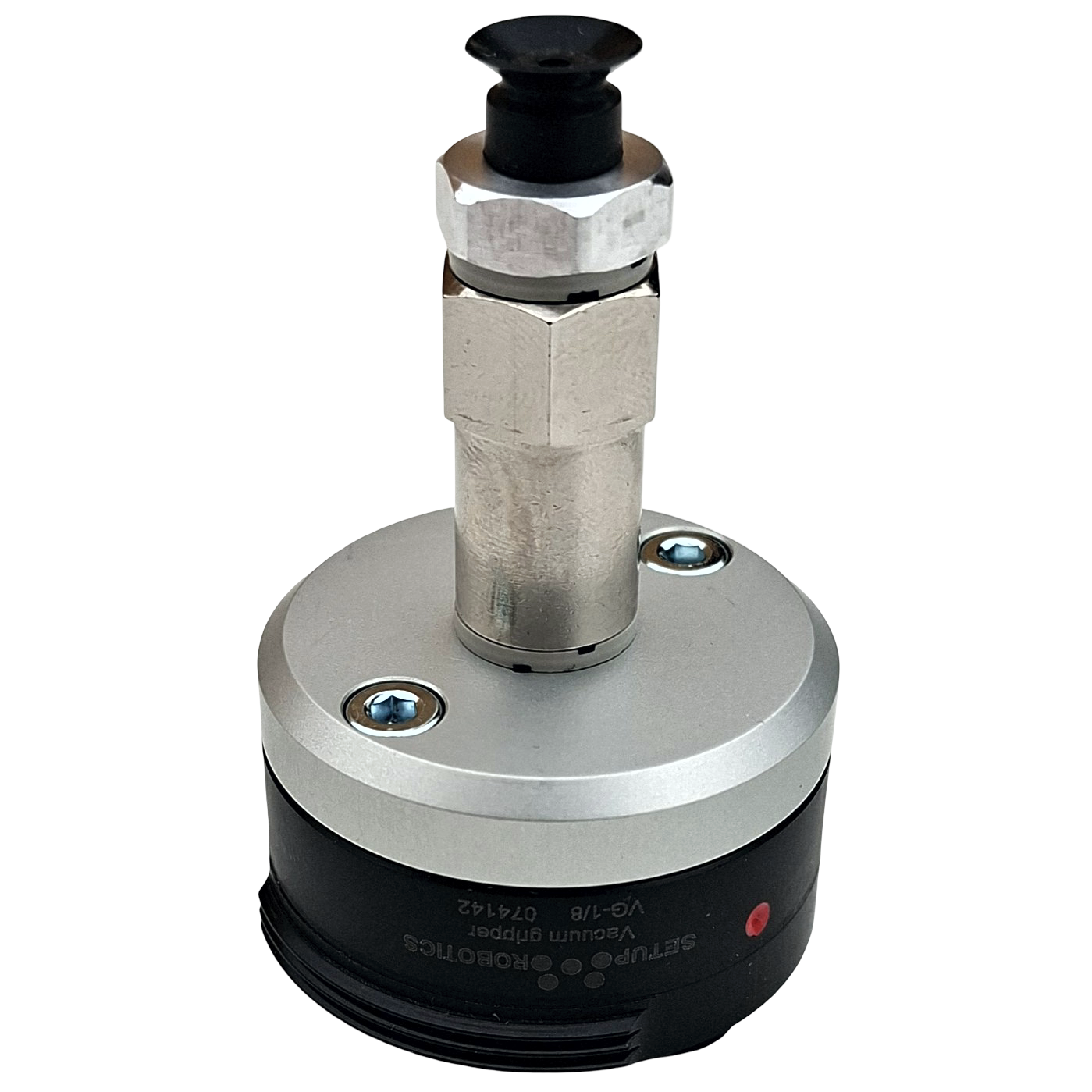

Vacuum Gripper G1/8″, 10mm cup, 26mm extension
A suction gripper is a simple yet effective gripper for handling of items.
By having the atmospheric pressure applied to the surface of an item and the pressure removed inside the suction gripper a clamping force is generated.
With our large range of vacuum/suction Grippers the opportunities are endless.
There are many advantages using a suction gripper:
• Enormously selection of different types from many sources.
• Low cost
• No adjustments
• Grip directly on item surface. (no space needed for gripper fingers)
• Items can be placed close together.
• Gently handling yet very powerful.
Vacuum generation
The Toolbase uses an industrial standard venturi pump delivering 85% vacuum and a flow of 6 l/min.
Feedback
The ToolBase measures the pressure inside the suction gripper. When the pressure is below a predefined level the ToolBase signals back to the robots an item is grapped.
*Must be mounted on our ToolBases.
